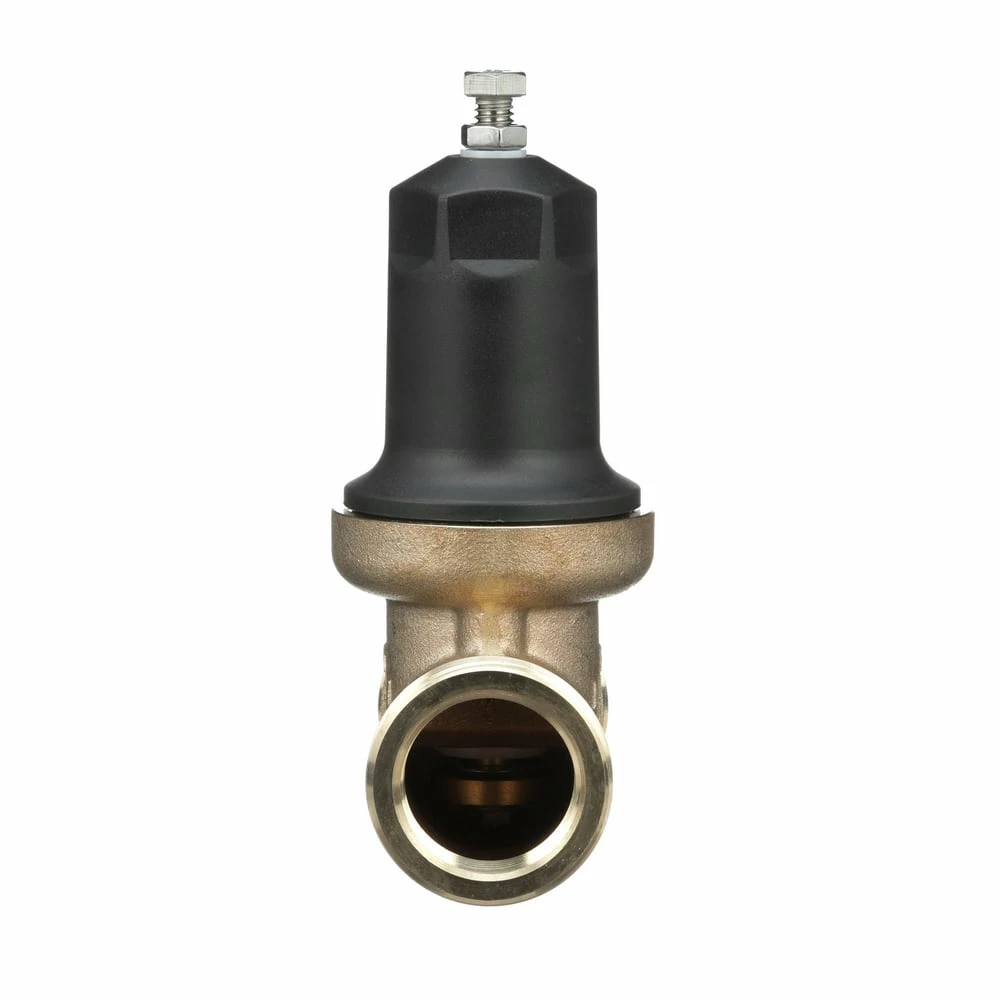

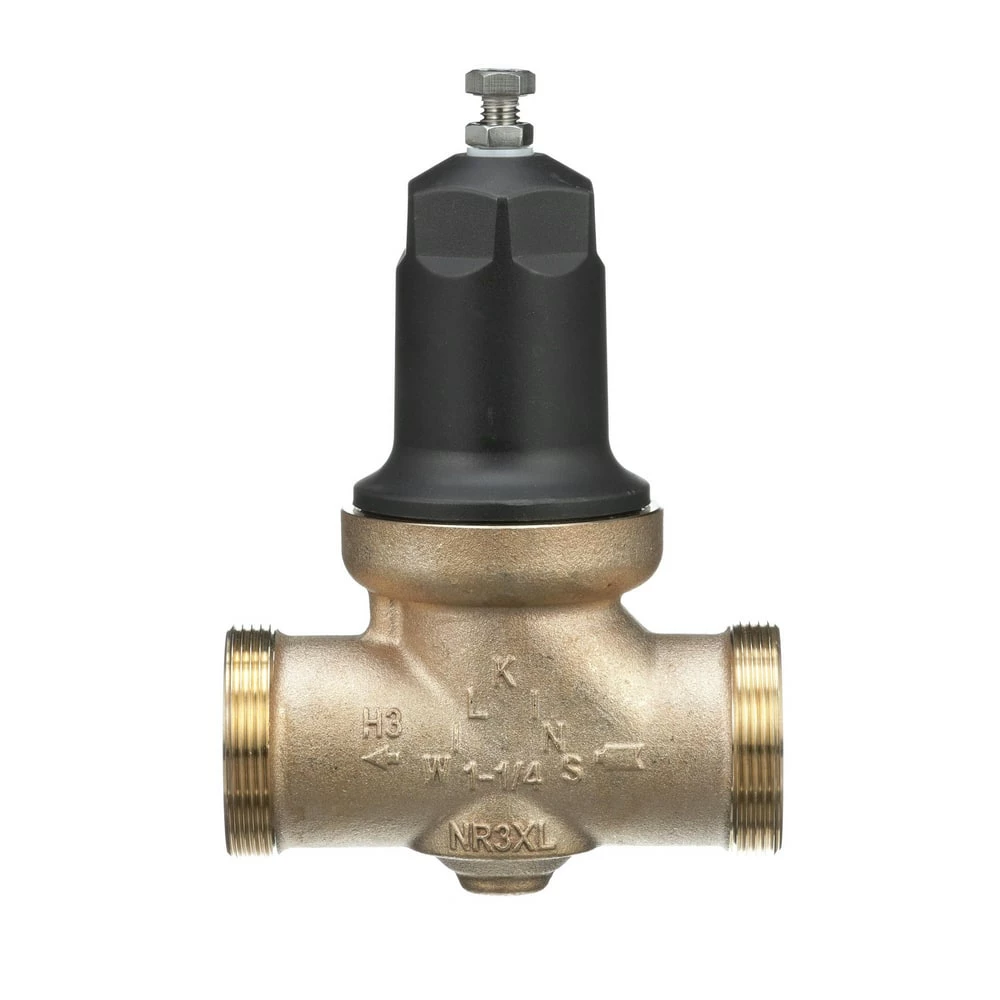

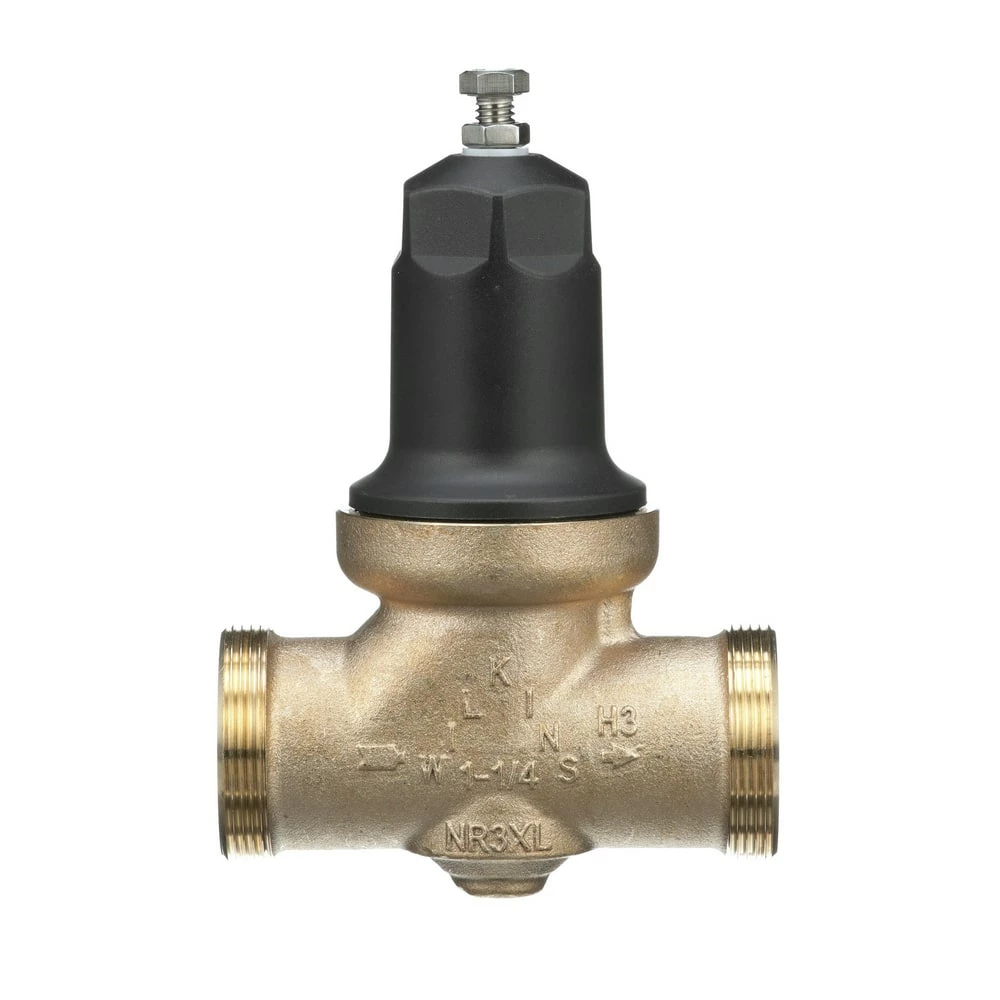

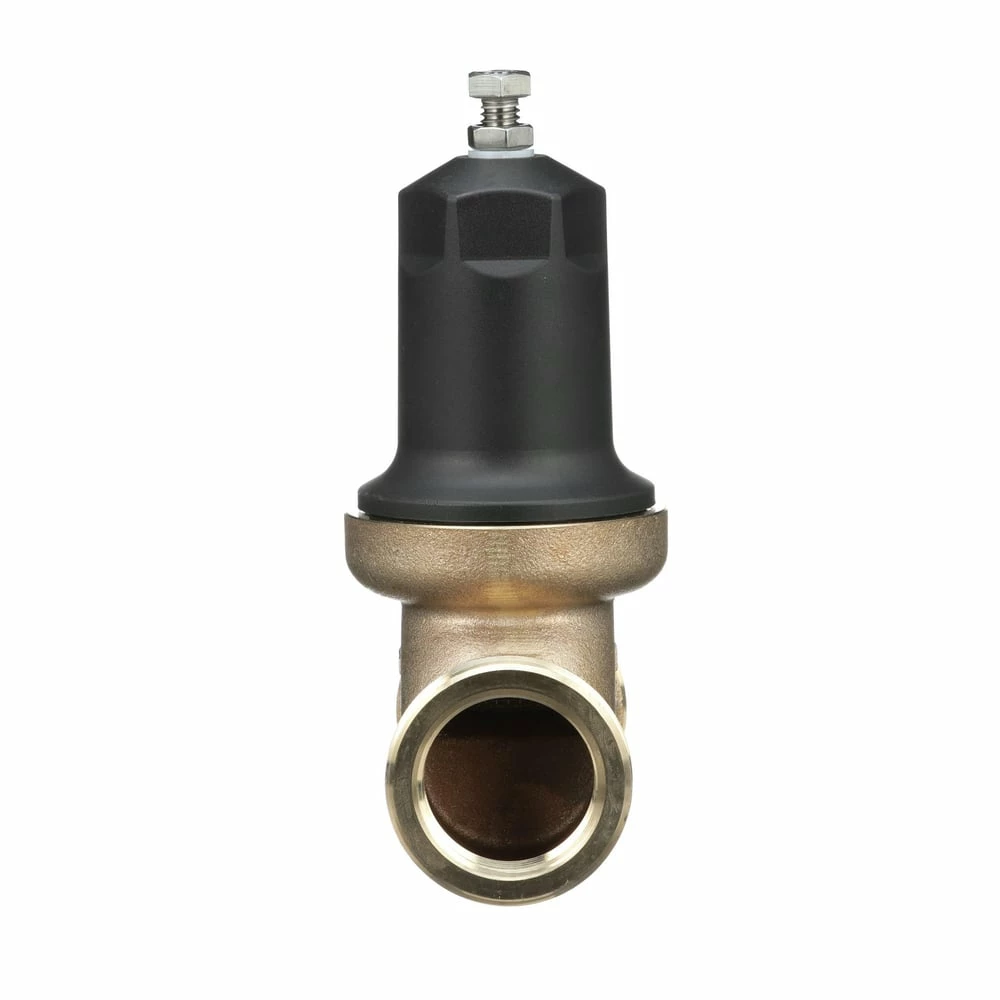

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒 - Image 2

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒 - Image 3

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒 - Image 4

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒 - Image 5

Buy 🔔 Zurn Wilkins NR3XL 1-1/4 in. Cast Bronze FNPT Pressure Reducing Valve 🛒

Original price was: $523.26.Current price is: $93.99.

SKU: 3966450 Category: Pressure Reducing Valves Tag: Cast Bronze

100% High Quality Guarantee
Hassle-Free Payments
100% High-Quality Guarantee
Protect Your Wallet with Safe Payments

1-1/4″ Pressure Reducing Valve Sealed Cage (SC) option with stainless Steel adjustment screw for below grade and meter box applications with 2 integral FNPT connection (no union)

Cartridge loaded design is easily repaired, ideal for residential applications

Compact design with short lay length allows installation in tight spaces

Labor saving tailpiece options ease installation, including PEX, threaded, copper sweat, CPVC, Z-Bite® and Z-Press® solderless connections, and more

Threaded bell speeds access to cartridge internals

ASSE® Listed 1003

IAPMO® Listed

CSA® Certified

ANSI 61

ANSI Specifications	ANSI 61 Annex G, ANSI B1.20.1, ANSI B16.22
Temperature Rating	140
Mesh Size	20
Minimum Pressure	15 psi
Minimum Temperature	33
NSF Certified	Yes
Origin	Global
Recommended Valve Application	Water
Size	1-1/4 in
UL Listed	No
Material Type	Polymer
Valve Body Material	Cast Bronze
Valve Body Style	Inline
Valve Seat Material	EPDM Elastomer
Valve Size	1-1/4 in
Valve Type	Pressure Reducing Valve
Weight	3.54
Weight Capacity	3.3
Width	3-3/10 in
Maximum Pressure	400 psi
Material	Cast Bronze
ASSE Standards	ASSE 1003
Faucet Mount	Vertical Mount
Application	Commercial, Potable Water, Residential
CSA Certified	CSA
Collection	NR3XL
Color Finish	Cast Bronze
Color Finish Category	Bronze Tones
End Connection 1	FNPT
End Connection 2	FNPT
End Connections	FNPT
Fitting Size 1	1-1/4 in
Low Pressure	15
Fitting Size 2	1-1/4 in
Fitting Sizes	1-1/4 in
Height	6-1/2 in
High Pressure	75
IAPMO Listed	Yes
Installation Type	Horizontal Mount, Vertical Mount
Lead Law Compliant	Yes
Length	6-2/5 in
cUPC Certified	Yes
